Air Classifier Mill

Integration of grinding and classifying, classifying wheel is adjusted to obtain ideal particle, and the classifying rotor can be installed horizontally or vertically.
Different types of grinding disc are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency.
Key parts are made of ceramic, ensuring non-contact with metal throughout the grinding for high purity of the final product.
It can produce products with multiple particle sizes at one time; grinding is in closed system, low dust and noise, clean and environmentally friendly production process.

Working Principle and Equipment type features

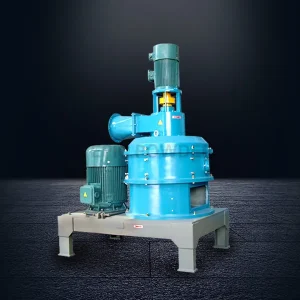

MJW-L air classifier mill is driven independently by the horizontal crushing disc and classifying wheel, and the classifying wheel is installed vertically. The material is evenly fed into the grinding chamber by the feeding system, and is strongly impacted by the high-speed rotating crushing disc, and at the same time, it is subjected to centrifugal force and collides with the crushing ring gear. The comprehensive effect of various forces such as impact, shear, friction, and collision to make the material into powder. The ground material moves to the classification area with the airflow, and the coarse and fine materials are separated by the frequency conversion regulated classifying wheel. The fine powder products that meet the fineness requirements are brought into the cyclone and dust collector by the airflow, and the coarse materials are returned to the grinding area for re-grinding.

Product Features

The design of the internal area and flow field is more flexible, and the scope of application is wider than that of the traditional air classifier mill.
Classifying wheels with different structures are suitable for powder products with different characteristics.
Low temperature design, suitable for high-efficiency grinding of heat-sensitive materials.
High temperature design, suitable for high-efficiency drying, grinding and dispersing of high-humidity materials.
Inert gas closed circuit design/pressure shock design, specially used for crushing flammable and explosive materials.

Technical Parameters

Parameter / Model		300	400	500	700	800	900	1000	1100	1250	1500	2000
Volume（L）	Motor Power（kw）	7.5	22	30	45	55	75-90	90	110-132	160-200	250	355
Volume（L）	Rotating speed（rpm）	7500	4800	4200	3000	2800	2350	2100	1920	1800	1500	1120
Classifying	Motor Power（kw）	2.2	4	5.5	7.5	7.5-11	15	15-22	22-30	22-37	45-55	55~75
Classifying	Rotating speed（rpm max）	4500	3250	3000	2920	2500	2200	2000	1800	1800	1500	1150
Draft Fan	Air volume（m³/h max）	700	1800	3000	4500	5400	8000	10000	12500	16500	22500	36000
Draft Fan	Fineness （μm）	5-300	5-300	5-300	5-300	5-300	5-300	5-300	5-300	5-300	5-300	5-300
Capacity	Capacity （kg/h）	2-100	10-1000	15-1500	20-2000	25-2500	40-4000	45-4500	60-6000	75-7500	100-10000	15-15000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
